Small Series Thermostat

Small but mighty, this simple model offers a very large display with a continuous backlight making it extremely easy to read and use.

Product Overview

  • Available in 2 Residential Models and 2 Fan Coil models.
  • Fan Coil models allow for three speed fan control with One for All design for 2-Pipe and 4-Pipe with Aux Heat.
  • Fan Coil models are ideal for hotel and apartment installations!

Small Series (Residential)

Standard Features

  • Autochangeover - automatically switches between heating and cooling as needed
  • LED indicator glows green or red to indicate cooling or heating
  • 2-stage cooling, 2-stage heating for use with gas/electric, heat pump or hydronic system
  • All programming and set points stored in non-volatile memory
  • Thermostat locking - set points can only adjusted by authorized individuals when this feature in on
  • Back-lit display
  • Fahrenheit or Celsius

Fan Coil Series (Commercial)

Standard Features

  • Fan Coil Control
  • 3-speed fan control
  • Remote sensor ready
  • Auto 2-pipe changeover when used with ACC-SENFC accessory changeover sensor
  • Dry contact equipped
  • Backlit display
  • Works with most low voltage controlled fan coil systems
  • Electric heat ready
  • Non-Volatile Memory, all setpoints and programming are permanently stored during power loss
  • Dual setpoint with adjustable deadband
  • Keypad lockout
  • Configurable display
  • Display either F or C
FEATURES Model T1010 (small display) Model T1050 (large display)
This 1-day programmable thermostat has up to 4 time periods per day.
It is extremely simple to operate with extra large display and large, soft buttons.
Featuring auto changeover, 2-Stage Heat/2-Stage Cool for use with gas/electrics, heat pumps, electric & hydronic heat.
This 5+2 day programmable thermostat has up to 4 time periods per day.
Model T1010 (small display) Model T1050 (large display)
This 1-day programmable thermostat has up to 4 time periods per day.
It is extremely simple to operate with extra large display and large, soft buttons
Featuring auto changeover, 2-Stage Heat/2-Stage Cool for use with gas/electrics, heat pumps, electric & hydronic heat.
This 5+2 day programmable thermostat has up to 4 time periods per day.
FEATURES Model T1070 Model T1075
Non-programmable
Self-prompting adjustment
Terminals on backplate
7-Day programmable
Clock Backup allows time to stay current for up to 48 Hours during power loss
Model T1070 Model T1075
Non-programmable
Self-prompting adjustment
Terminals on backplate
7-Day programmable
Clock Backup allows time to stay current for up to 48 Hours during power loss

Add-A-Wire

Model: ACC-0410

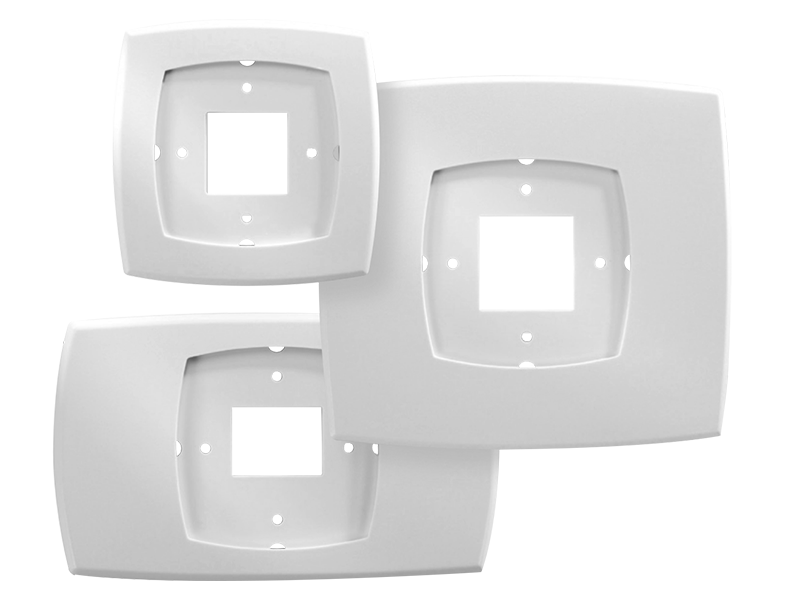

Small Series Wall Plates

Model: ACC-0421

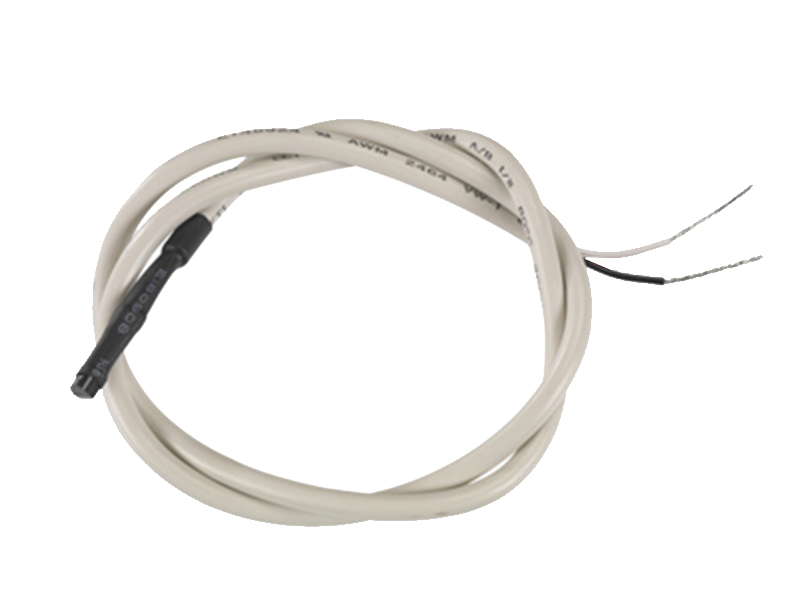

Duct Sensor

Model: ACC0410

Compatible with: T1070, T1075 only

Small Series (Residential)

Model T1010 - Literature

Model T1050 - Literature

Fan Coil Series (Commercial)

Model T1070 - Literature

Model T1075 - Literature
